Descrizione

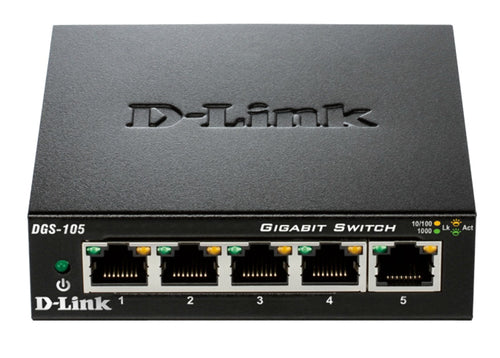

D-Link DGS-105. Trasmissione dati: 1 Gbit/s, 10/100/1000Mbps, 2000 Mbit/s, 10 Gbit/s. Networking: 2000 ENTRATE, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Caratteristiche di gestione: No gestito. Connettività: 1000BASE-T, 100BASE-TX, 10BASE-T. Memoria: 0.128 MB. Peso e dimensioni: 100 x 98 x 28 mm, 286 g. Gestione energetica: 3.10 W, 1 A, 5 V. Durata: 1688338 h. Certificati di sicurezza: FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS. Condizioni ambientali: 10 - 90 %, 0 - 50 °C, 10 - 70 °C, 5 - 90 %. Illuminazione/Allarmi: Link, Power, Si. Colori: Nero. Material: Metallo
Standards
- IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet
- ANSI/IEEE 802.3 NWay auto-negotiation
- IEEE 802.3x flow control
- IEEE 802.3az Energy Efficient Ethernet (EEE)
Layer2 Features
- MAC address table: 2K
- Auto MDI/MDIX crossover for all ports
- Store-and-forward switching scheme
- Full/half-duplex for Ethernet/Fast Ethernet speeds
- Full-duplex only for Gigabit Ethernet speed
- Jumbo Frames: 9000 Bytes
Switching fabric
Data Transfer Rates
- Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
- Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
- Gigabit Ethernet: 2000 Mbps (full duplex)
Packet Filtering/Forwarding Rates
- Ethernet: 14,880 pps per port
- Fast Ethernet: 148,800 pps per port
- Gigabit Ethernet: 1,488,000 pps per port
RAM Buffer
LED Indicators
- Per port: Link/Activity/Speed
- Per device: Power
Quality of Service (QoS)
- Supports 802.1p QoS
- 4 Queues, Strict Mode
Green features
- Energy Efficient Ethernet (EEE) standard
- D-Link Green: power saving by cable length detection
- RoHS compliant
Power
- External 5 V/1 A Level “V” Power Adapter
Power Consumption (DC input)
- Standby: 0.5 W.
- Maximum: 2.01 W.
MTBF
Temperature
- Operating: 0 to 50 ˚C
- Storage: -10 to 70 ˚C
Humidity
- Operating: 10% to 90% RH non-condensing
- Storage: 5% to 90% RH non-condensing
Dimensions (W x D x H)
Certifications
- FCC Class B
- ICES-003 Class B
- CE Class B
- C-Tick Class B
- VCCI Class B
- cUL
- CB
